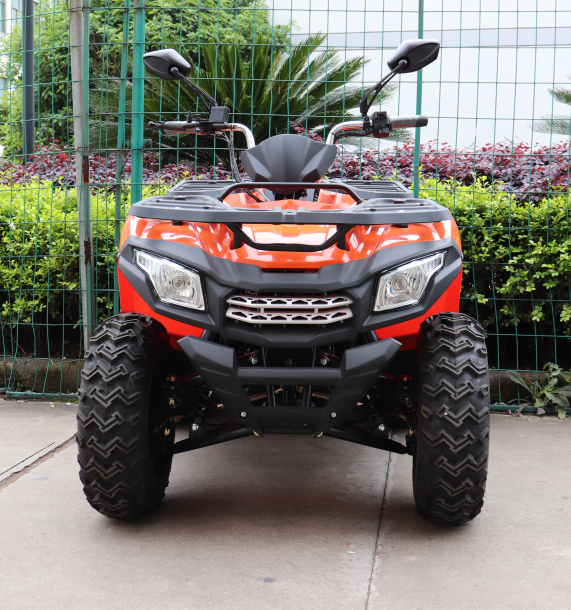

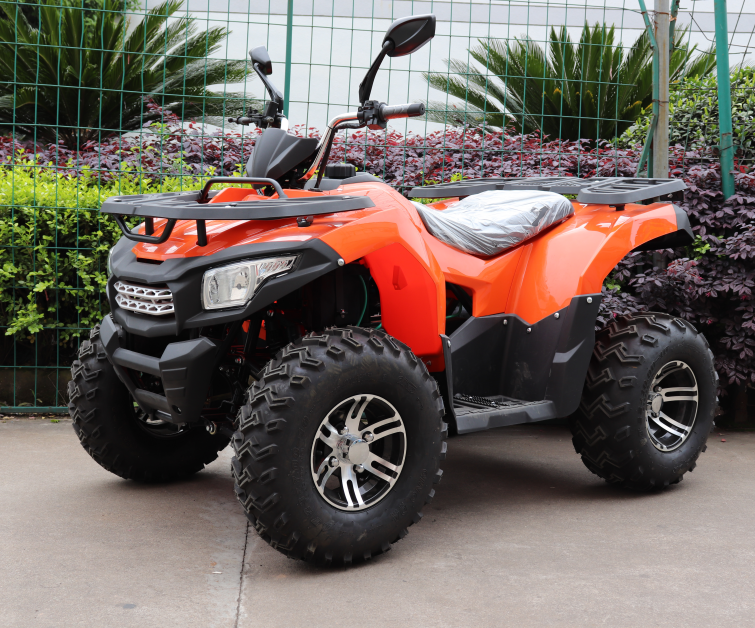

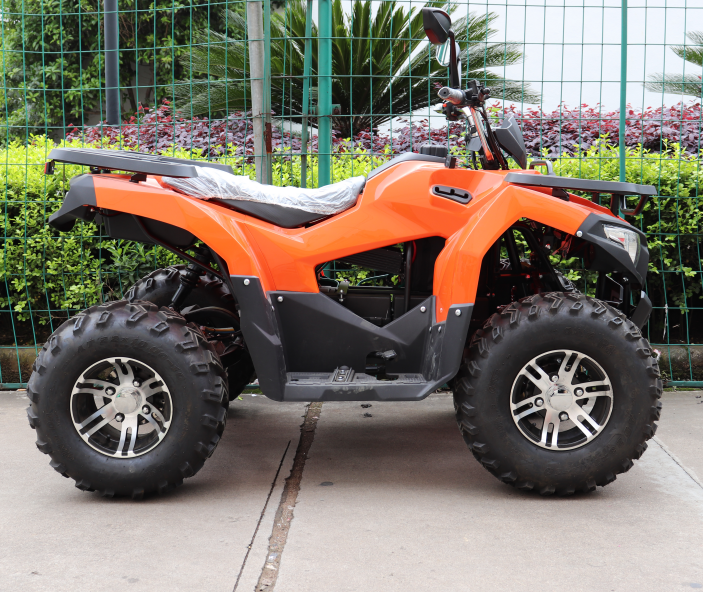

E-ATV 009

E-ATV 009

1.Battery: 12V50AH * 5pcs
2.Motor: 60V/ 5000W.
Rated touque:12.8N.M
Rated Rpm:3000R/min
Max Power:10KW
Max Touque:>60N.m
Max :Rpm:5000r/m
3.Controller: 60V/5000W
4.Charge Requirement:
AC200-240V 50-60Hz 60V/MAX3.0A
5.Charging time: 15-18h
6.Front brake: mechanical drum
7.Rear brake: hydraulic disc
8.Tire: F/23*7.00-10 R/22*10.00-10
9.Transmission: shaft
10.Max speed: 60km/h
11.Range distance: 50km
12.Max loading: 300kg
13.Max climbing degree: 45°
14.Seat height: 900mm
15.Ground height: 220mm
16.Wheel base: 1180mm
17.Front wheel base: 880mm
18.Rear wheel base: 900mm
19.Net weight: 263kg
20.Gross weight: 291kg
21.Product size: 1900×1050×1120MM
22.Packing size: 195*112*85cm
