商品说明

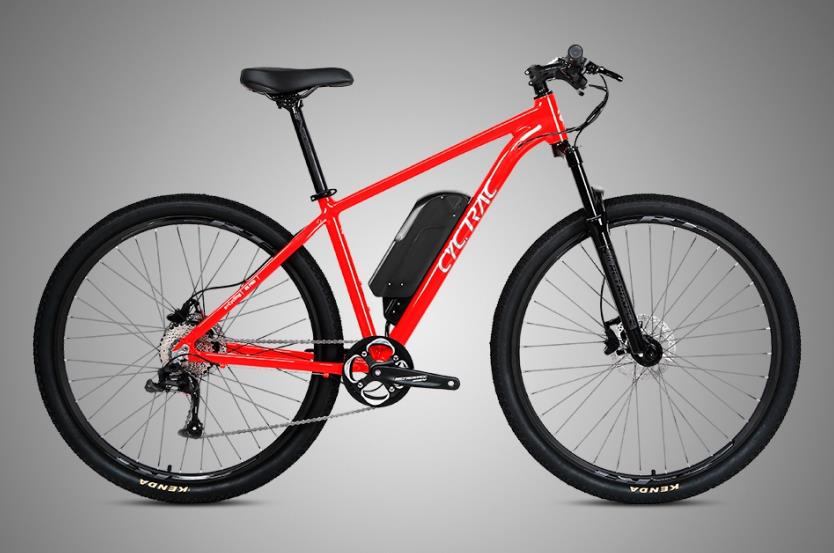

Electric bike E5pro-Hub
商品参数
| Bike Model | E5pro-Hub |
|
|
| | ConfRev | Speed-36V350W10A | Speed-48V350W10A | Torque-36V350W10A | Torque-48V350W10A | | Frame Size | 29(27.5)×15" / 17" / 19" | | Bike Color | Black / Red / Orange | | Net Weight | 19.5 KG | 20.3 KG | 19.5 KG | 20.3 KG | | Frame | CYCTRAC, E5pro, Alu alloy AL6061&strengthen, Flat weld&Smooth, Inner cables, Gloss+UV brushed decals | | Handelbar Sets | RS, Alu alloy,Matte,Handlebar 31.8*720,Stem 80,Seat post 31.6*350, Clamps 34.9mm QR | | Fork | RS, Alu alloy, Coil suspension, Manual-lockout | | Head Sets | Alu alloy CNC, 44*44mm | | Derailleur Lever | LTWOO V5109 -9S | | Rear Derailleur | LTWOO V5009 -9S | | Cranksets | RS, Alu alloy, Square hole, 38T with guard | | Cassettes | SUGEK-9S, 11-32T | | Chain | SUMC-9S | | Brake | RS, hydraulic disc brake(with EM power off ),160/160mm | ZOOM, hydraulic disc brake,160/160mm | | Hub | RS, Alu alloy, 2-sealed Bearings, Disc brake | | Rim | RS, Alu alloy with Double-wall&Rivets, W24×H19mm | | Spoke | SHUNJIU, Circular | | Tire | KENDA-K1187, 29/27.5×1.95" | | Grips | Circular 22.2×120mm, PU leather&locking Ring | | Saddle | Comfortable and Thickened for MTB | | Pedals | Alu alloy with lubricating for MTB | | Motor | Hub Motor,Slotted,36V350W | Hub Motor,Slotted,48V350W | Hub Motor,Slotted,36V350W | Hub Motor,Slotted,48V350W | | Max Torque | 50 N.m | 50 N.m | 50 N.m | 50 N.m | | Assist Speed | 25KMh limit (35KMh max) | 25KMh limit (35KMh max) | 25KMh limit (35KMh max) | 25KMh limit (35KMh max) | | Pedal Sensor | Speed (cadence) | Speed (cadence) | Torque+Speed Integrated | Torque+Speed Integrated | | Battery | 18650 Li-ion 360Wh, 36V10A | 18650 Li-ion 480Wh, 48V10A | 18650 Li-ion 360Wh, 36V10A | 18650 Li-ion 480Wh, 48V10A | | Endurance | Pedal assist, 70-90KM | Pedal assist, 90-110KM | Pedal assist, 70-90KM | Pedal assist, 90-110KM |
| Throttle, 40-50KM | Throttle, 50-60KM | Throttle, 40-50KM | Throttle, 50-60KM | | Charging Time | 4-5 Hours | 5-6 Hours | 4-5 Hours | 5-6 Hours | | Charger | 2A, DC2.1 | 2A, DC2.1 | 2A, DC2.1 | 2A, DC2.1 | | HMI | LCD digital, 0-5 Modes | LCD digital, 0-5 Modes | LCD digital, 0-5 Modes | LCD digital, 0-5 Modes | | Controller | Intelligent IC & Sine wave | Intelligent IC & Sine wave | Intelligent IC+Torque&Speed | Intelligent IC+Torque&Speed | | Waterproof | IP56, Waterproof connector | IP56, Waterproof connector | IP56, Waterproof connector | IP56, Waterproof connector | | Max Load | 130 KG | 130 KG | 130 KG | 130 KG |
|
|
