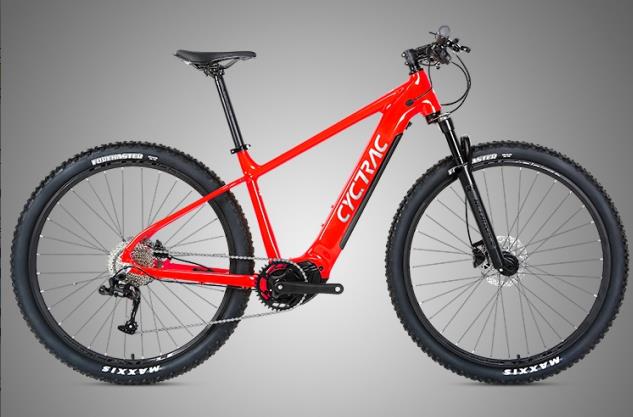

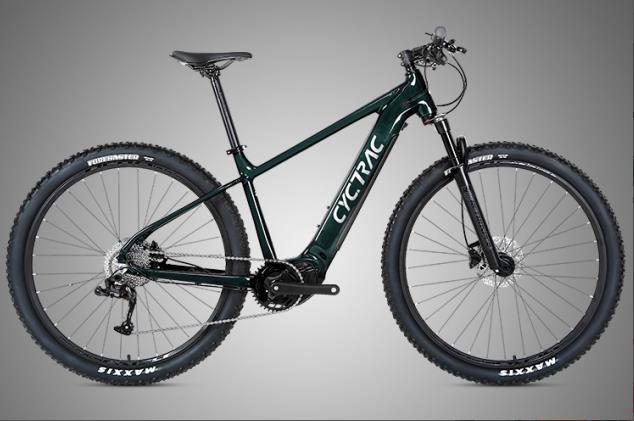

| Bike Model | EM5 |
|
|
| ConfRev | RS10+M410+36V13A | NX11+M410+36V16A | M6100/12+M510+48V13A (36V16A) |
| Frame Size | 29(27.5)×16" / 18" |
| Bike Color | DarkGreen / Red / Orange |
| Net Weight | 21.3KG | 21.7KG | 21.4KG |
| Frame | CYCTRAC, EM5, Alu alloy AL6061,Flat weld&Smooth,Inner cables,Thru-axle12*148 Boost, Gloss+UV laser decals |
| Handelbar Sets | RS, Alu alloy,Matte,Handlebar 31.8×720,Stem 80,Seat post 31.6×350mm,Clamps 34.9mm QR |
| Fork | RS, MgAl alloy, Air suspension,Remote, Thru-axle 15*110mm Boost |
| Head Sets | Alu alloy CNC with sealed Bearings 44*56mm |
| Derailleur Lever | RETROSPEC(LTWOO) V5010-10S | SRAM NX-11S | SHIMANO DEORE/M6100-12S |
| Rear Derailleur | RETROSPEC(LTWOO) V5010-10S | SRAM NX-11S | SHIMANO DEORE/M6100-12S |
| Cranksets | Matching with Mid Motor, 38T | Matching with Mid Motor, 38T | Matching with Mid Motor, 38T |
| Cassettes | SUNSHINE-10S,11-36T | SUNSHINE-11S,11-42T | SUNSHINE-12S,11-50T |
| Chain | SUMC-10S | SUMC-11S | SUMC-12S |
| Brake | SHIMANO MT200 hydraulic disc brake,180/180mm |
| Hub | RS, Alu alloy,4-sealed Bearings,Slotted,Disc,32Holes,Thru-axle F15×110_R12×148mm Boost |
| Rim | RS, Alu alloy with Double-wall&Rivets, W24×H19mm |
| Spoke | SHUNJIU, Circular 14G |
| Tire | MAXXIS, CROSSMARK, 29/27.5×2.25" |
| Grips | Circular 22.2×120mm, PU leather&locking Ring |
| Saddle | RS, Comfortable and Thickened for MTB |
| Pedals | RS, Alu alloy CNC with Bearings for MTB |
| Motor System | Bafang Mid, M410, 36V250W | Bafang Mid, M410, 36V250W | Bafang Mid, M510, 48V250W (36V250W) |
| Max Torque | 80 N.m (Peak 100N.m) | 80 N.m (Peak 100N.m) | 95 N.m (Peak 130N.m) |
| Speed Limit | 25KMh (max 32KMh) | 25KMh (max 32KMh) | 25KMh (max 45KMh) |
| Pedal Sensor | Torque+Cadence | Torque+Cadence | Torque+Cadence |
| Battery | 18650 Li-ion 468Wh, 36V13A | 18650 Li-ion 576Wh, 36V16A | 18650 Li-ion 624Wh, 48V13A (36V16A) |
| Endurance | 100-120KM (pedal assist) | 120-140KM (pedal assist) | 120-150KM (pedal assist) |
| Charging Time | 6-7 Hours | 7-8 Hours | 7-8 Hours |
| Charger | 2A, DC2.1 | 2A, DC2.1 | 2A, DC2.1 |
| HMI | Bafang, LCD digital, 0-5 Modes | Bafang, LCD digital, 0-5 Modes | Bafang, LCD digital, 0-5 Modes |
| Waterproof | IP X5 | IP X5 | IP X5 |
| Max Load | 150 KG | 150 KG | 150 KG |
