商品说明

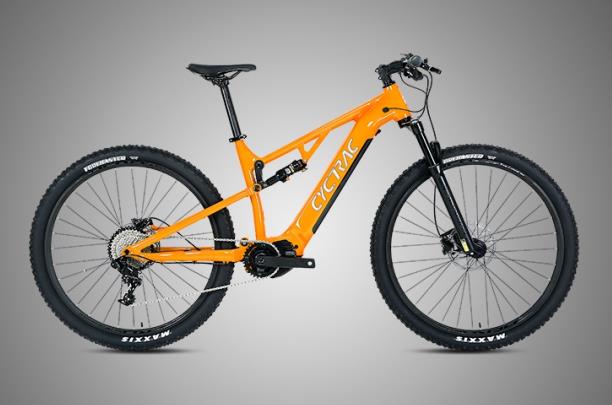

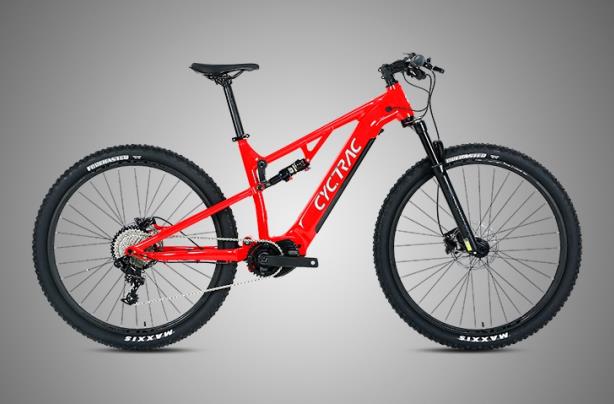

Electric bike EM6
商品参数
| Bike Model | EM6 |
| | ConfRev | NX11+M510+48V13A (36V16A) | M6100/12+M600+48V13A | | Frame Size | 29(27.5)×16" / 18" | | Bike Color | DarkGreen / Red / Orange | | Net Weight | 23.0KG | 24.2KG | | Frame | CYCTRAC, EM6,AM, AL7005,Flat weld&Smooth,Inner cables,Thru-axle12*148 Boost,DNM rear shox165*35,Gloss+UV laser decals | | Handelbar Sets | RS, Alu alloy,Matte,Handlebar 31.8×720,Stem 80,Seat post 31.6×350mm,Clamps 34.9mm QR | | Fork | RS, MgAl alloy, Air suspension,120mm, Remote, Thru-axle 15*110mm Boost | | Head Sets | Alu alloy CNC with sealed Bearings 44*56mm | | Derailleur Lever | SRAM NX-11S | SHIMANO DEORE/M6100-12S | | Rear Derailleur | SRAM NX-11S | SHIMANO DEORE/M6100-12S | | Cranksets | Matching with Mid Motor, 38T | Matching with Mid Motor, 38T | | Cassettes | SUNSHINE-11S,11-42T | SUNSHINE-12S,11-50T | | Chain | SUMC-11S | SUMC-12S | | Brake | SHIMANO MT200 hydraulic disc brake,180/180mm | | Hub | RS, Alu alloy,4-sealed Bearings,Slotted,Disc,32Holes,Thru-axle F15×110_R12×148mm Boost | | Rim | RS, Alu alloy with Double-wall&Rivets, W24×H19mm | | Spoke | SHUNJIU, Circular 14G | | Tire | MAXXIS, CROSSMARK, 29/27.5×2.25" | | Grips | Circular 22.2×120mm, PU leather&locking Ring | | Saddle | RS, Comfortable and Thickened for MTB | | Pedals | RS, Alu alloy CNC with Bearings for MTB | | Motor System | Bafang Mid, M510, 48V250W (36V250W) | Bafang Mid, M600, Mid, 48V500W | | Max Torque | 95 N.m (Peak 130N.m) | 120 N.m (Peak 140N.m) | | Speed Limit | 25KMh (max 45KMh) | 25KMh (max 45KMh) | | Pedal Sensor | Torque+Speed Integrated | Torque+Speed Integrated | | Battery | 18650 Li-ion 624Wh, 48V13A (36V16A) | 18650 Li-ion 624Wh, 48V13A | | Endurance | 120-150KM (pedal assist) | 120-140KM (pedal assist) | | Charging Time | 7-8 Hours | 7-8 Hours | | Charger | 2A, DC2.1 | 2A, DC2.1 | | HMI | Bafang, LCD digital, 0-5 Modes | Bafang, LCD digital, 0-5 Modes | | Waterproof | IP X5 | IP X5 | | Max Load | 150 KG | 150 KG |
|
|
