商品说明

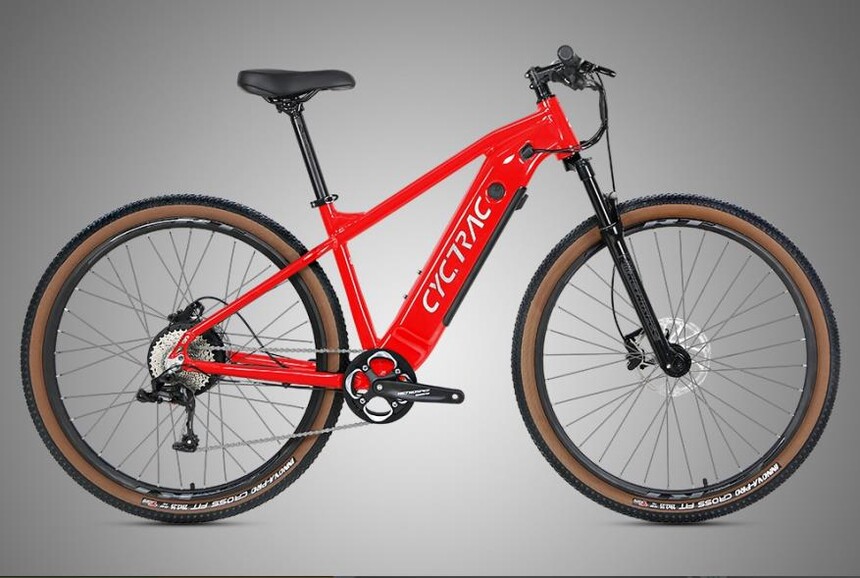

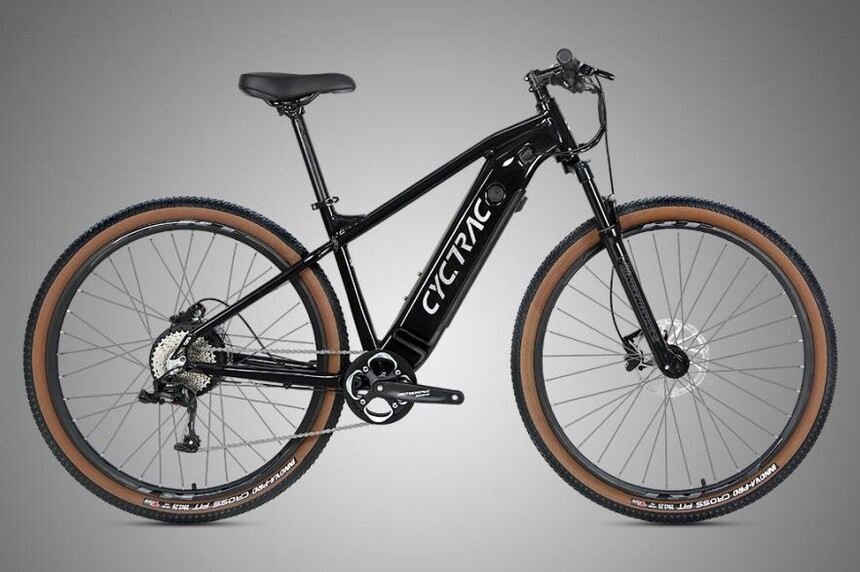

Electric bike E300-Hub
商品参数
| Bike Model | E300-Hub |
|
|
| | ConfRev | Speed-48V350W10A (36V350W13A) | Speed-48V500W13A | Torque-48V350W10A (36V350W13A) | Torque-48V500W13A | | Frame Size | 29(27.5)×16" / 18" | | Bike Color | Black / Red / Orange | | Net Weight | 21.7 KG | 22.9 KG | 21.9 KG | 22.9 KG | | Frame | CYCTRAC, E300, alu alloy AL6061&strengthen, Flat weld, Inner cables, Gloss+UV brushed decals | | Handelbar Sets | RS, Alu alloy,Matte,Handlebar 31.8*720,Stem 80,Seat post 31.6*350, Clamps 34.9mm QR | | Fork | RS, Alu alloy, Coil suspension, Manual-lockout | | Head Sets | Alu alloy CNC with sealed Bearings, 44*56mm | | Derailleur Lever | RETROSPEC(LTWOO) V5010 -10S | | Rear Derailleur | RETROSPEC(LTWOO) V5010 -10S | | Cranksets | RS, Alu alloy, Square hole, 38T with guard | | Cassettes | SUGEK-10S, 11-36T | | Chain | SUMC-10S | | Brake | RS, hydraulic disc brake(with EM power off ),160/160mm | ZOOM, hydraulic disc brake,160/160mm | | Hub | RS, Alu alloy, 2-sealed Bearings, Disc brake | | Rim | RS, Alu alloy with Double-wall&Rivets, W24×H19mm | | Spoke | SHUNJIU, Circular | | Tire | INNOVA-PRO, Skin-color edge, 29/27.5×2.25" | | Grips | Circular 22.2×120mm, PU leather&locking Ring | | Saddle | Comfortable and Thickened for MTB | | Pedals | Alu alloy with lubricating for MTB | | Motor | Hub Motor,Slotted,48V350W(36V350W) | Hub Motor,Slotted,48V500W | Hub Motor,Slotted,48V350W(36V350W) | Hub Motor,Slotted,48V500W | | Max Torque | 50 N.m | 65 N.m | 50 N.m | 65 N.m | | Assist Speed | 25KMh limit (35KMh max) | 25KMh limit (35KMh max) | 25KMh limit (35KMh max) | 25KMh limit (35KMh max) | | Pedal Sensor | Speed (cadence) | Speed (cadence) | Torque+Speed Integrated | Torque+Speed Integrated | | Battery | 18650 Li-ion 480Wh, 48V10A(36V13A) | 18650 Li-ion 624Wh, 48V13A | 18650 Li-ion 480Wh, 48V10A(36V13A) | 18650 Li-ion 624Wh, 48V13A | | Endurance | Pedal assist, 90-110KM | Pedal assist, 100-120KM | Pedal assist, 90-110KM | Pedal assist, 100-120KM |
| Throttle, 50-60KM | Throttle, 60-70KM | Throttle, 50-60KM | Throttle, 60-70KM | | Charging Time | 5-6 Hours | 6-7 Hours | 5-6 Hours | 6-7 Hours | | Charger | 2A, DC2.1 | 2A, DC2.1 | 2A, DC2.1 | 2A, DC2.1 | | HMI | LCD digital, 0-5 Modes | LCD digital, 0-5 Modes | LCD digital, 0-5 Modes | LCD digital, 0-5 Modes | | Controller | Intelligent IC & Sine wave | Intelligent IC & Sine wave | Intelligent IC+Torque&Speed | Intelligent IC+Torque&Speed | | Waterproof | IP56, Waterproof connector | IP56, Waterproof connector | IP56, Waterproof connector | IP56, Waterproof connector | | Max Load | 130 KG | 130 KG | 130 KG | 130 KG |
|
|
