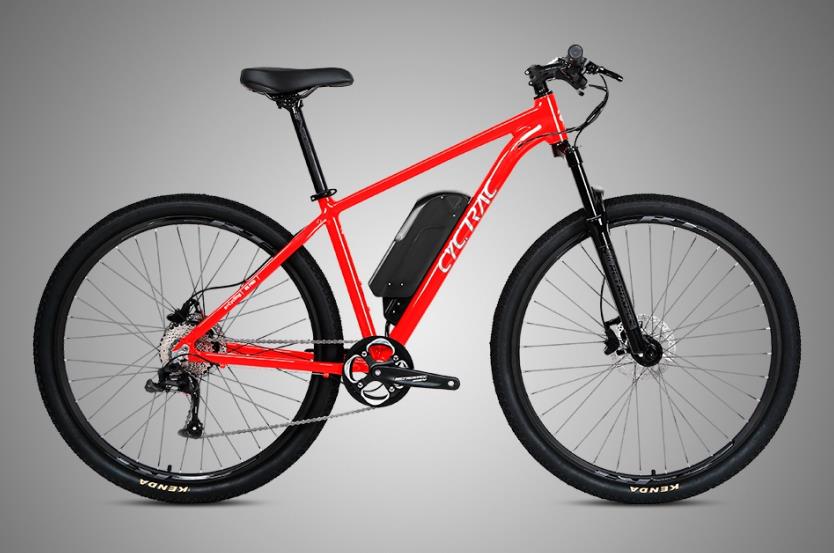

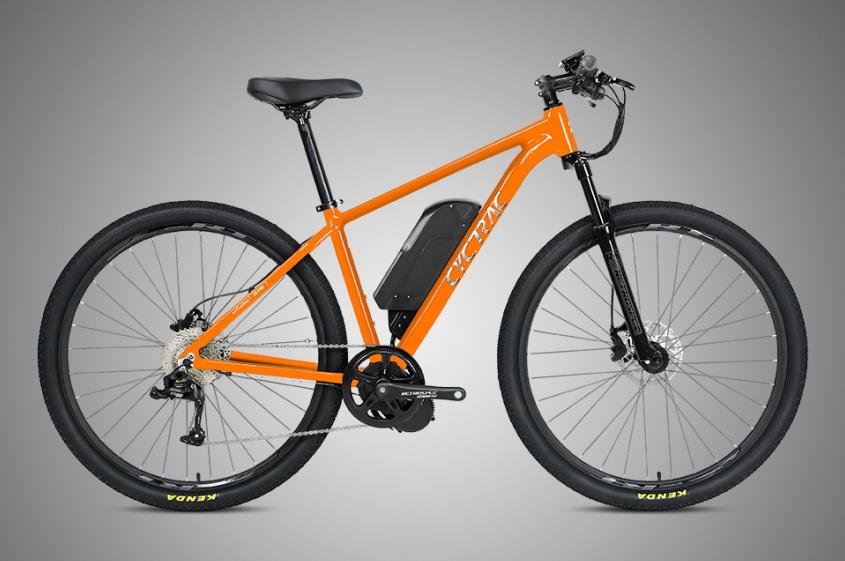

Electric bike E5pro-Mid
商品参数
| Bike Model | E5pro-Mid | | ConfRev | 48V350W10A | 48V500W13A | 48V750W13A | | Frame Size | 29(27.5)×15" / 17" / 19" | | Bike Color | Black / Red / Orange | | Net Weight | 21.9 KG | 22.2 KG | 22.5 KG | | Frame | CYCTRAC, E5pro, Alu alloy AL6061&strengthen, Flat weld&Smooth, Inner cables, Gloss+UV brushed decals | | Handelbar Sets | RS, Alu alloy,Matte,Handlebar 31.8*720,Stem 80,Seat post 31.6*350,Clamps 34.9mm QR | | Fork | RS, Alu alloy, Coil suspension, Manual-lockout | | Head Sets | Alu alloy CNC, 44*44mm | | Derailleur Lever | RETROSPEC(LTWOO) V5010-10S | | Rear Derailleur | RETROSPEC(LTWOO) V5010-10S | | Cranksets | Matching with Mid Motor 44T with guard | | Cassettes | SUGEK-10S,11-36T | | Chain | YBN-10S | | Brake | RS, hydraulic disc brake(with EM power off ),160/160mm | | Hub | RS Alu alloy, 2-sealed Bearings, Disc brake, Slotted, 32h | | Rim | RS, Alu alloy with Double-wall&Rivets, W24×H19mm | | Spoke | SHUNJIU, Circular 14G | | Tire | KENDA-K1187, 29/27.5×1.95" | | Grips | Circular 22.2×120mm, PU leather&locking Ring | | Saddle | Comfortable and Thickened for MTB | | Pedals | Alu alloy with lubricating for MTB | | Motor | Bafang, Mid, BBS-G340, 48V350W | Bafang, Mid, BBS-G340, 48V500W | Bafang, Mid, BBS-G320, 48V750W | | Max Torque | 80 N.m | 100 N.m | 120 N.m | | Assist Speed | 25KMh limit (35KMh max) | 25KMh limit (45KMh max) | 25KMh limit (45KMh max) | | Pedal Sensor | Speed (cadence) | Speed (cadence) | Speed (cadence) | | Battery | 18650 Li-ion 480Wh, 48V10A | 18650 Li-ion 624Wh, 48V13A | 18650 Li-ion 624Wh, 48V13A | | Endurance | Pedal assist, 90-110KM | Pedal assist, 100-120KM | Pedal assist, 90-110KM |
| Throttle, 50-60KM | Throttle, 60-70KM | Throttle, 50-60KM | | Charging Time | 5-6 Hours | 6-7 Hours | 6-7 Hours | | Charger | 2A, DC2.1 | 2A, DC2.1 | 2A, DC2.1 | | HMI | LCD digital,0-5 Modes | LCD digital,0-5 Modes | LCD digital,0-5 Modes | | Controller | Intelligent IC & Sine wave | Intelligent IC & Sine wave | Intelligent IC & Sine wave | | Waterproof | IP56/IPX5, Waterproof connector | IP56/IPX5, Waterproof connector | IP56/IPX5, Waterproof connector | | Max Load | 130 KG | 130 KG | 130 KG |
|
|
