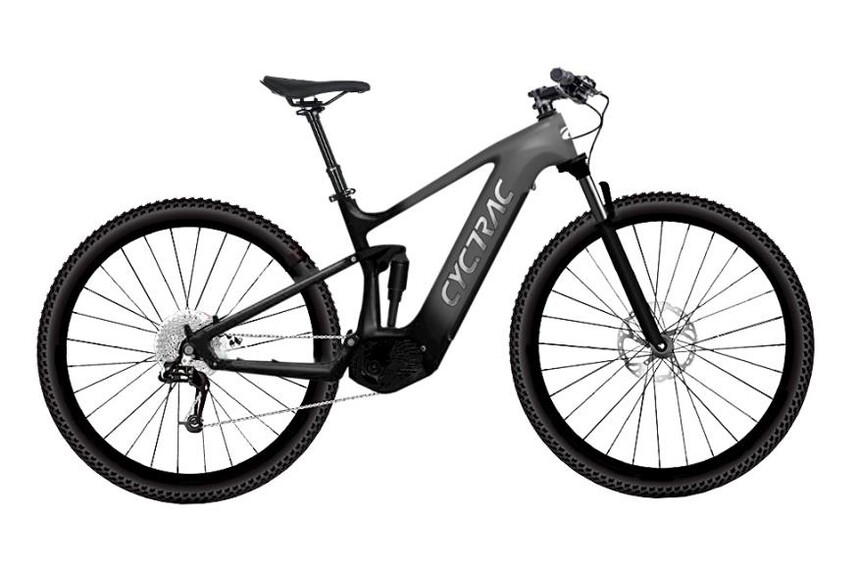

Electric bike EM9-150S
商品参数
| Bike Model | EM9-150S |
| | ConfRev | M6100/12+M510+48V15A (36V20A) | M6100/12+M600+48V15A | | Frame Size | 29(27.5)×17" | | Bike Color | BlackRed / BlackDarkGreen / BlackDarkGray | | Net Weight | 22.9KG | 23.9KG | | Frame | CYCTRAC, EM9-150S,AM, High modulus Carbon fiber,Inner cables,Thru-axle12*148 Boost,DNM rear shox200*55,Gloss+UV laser decals | | Handelbar Sets | RS, Alu alloy,Matte,Handlebar 31.8×720,Stem 80,Clamps 34.9mm QR, KS adjustable lifting Seat post(Remote,31.6**395*125mm) | | Fork | ROCKSHOX-RECON, Air suspension,150mm, Manual-lockout, Thru-axle 15*110mm Boost | | Head Sets | Alu alloy CNC with sealed Bearings 52*52mm | | Derailleur Lever | SHIMANO DEORE/M6100-12S | | Rear Derailleur | SHIMANO DEORE/M6100-12S | | Cranksets | Matching with Mid Motor, 38T | | Cassettes | SUNSHINE-12S,11-50T | | Chain | SUMC-12S | | Brake | SHIMANO MT200 hydraulic disc brake,180/180mm | | Hub | RS, Alu alloy,4-sealed Bearings,Slotted,Disc,32Holes,Thru-axle F15×110_R12×148mm Boost | | Rim | RS, Alu alloy with Double-wall&Rivets, W24×H19mm | | Spoke | SHUNJIU, Circular 14G | | Tire | MAXXIS, CROSSMARK, 29/27.5×2.25" | | Grips | Circular 22.2×120mm, PU leather&locking Ring | | Saddle | RS, Comfortable and Thickened for MTB | | Pedals | RS, Alu alloy CNC with Bearings for MTB | | Motor System | Bafang Mid, M510, 48V250W (36V250W) | Bafang Mid, M600, Mid, 48V500W | | Max Torque | 95 N.m (Peak 130N.m) | 120 N.m (Peak 140N.m) | | Speed Limit | 25KMh (max 45KMh) | 25KMh (max 45KMh) | | Pedal Sensor | Torque+Cadence | Torque+Cadence | | Battery | 21700 Li-ion 720Wh, 48V15A (36V20A) | 21700 Li-ion 720Wh, 48V15A | | Endurance | 150-170KM (pedal assist) | 140-160KM (pedal assist) | | Charging Time | 8-9 Hours | 8-9 Hours | | Charger | 2A, DC2.1 | 2A, DC2.1 | | HMI | Bafang, LCD digital, 0-5 Modes | Bafang, LCD digital, 0-5 Modes | | Waterproof | IP X5 | IP X5 | | Max Load | 150 KG | 150 KG |
|
|
