F20 folding e-bike

商品说明

F20 folding e-bike

bike 1.jpg

商品参数

Bike Model	F20 folding e-bike
ConfRev	36V350W13A (48V350W10A)
Wheel Size	20" (150-190cm)

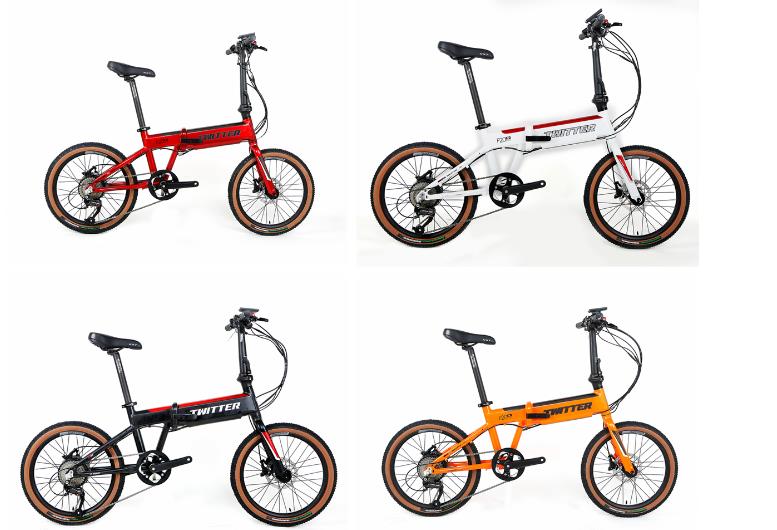

Bike Color	Black / Red / Orange / White
Net Weight	≈18.9KG
Frame	F20, Foldable 20",alu alloy AL6061 & Strengthen,Flat weld, Inner cables, Gloss+UV decals
Handelbar Sets	RS Alu alloy, Hb25.4600, foldable&liftable Stem, Sp 33.9500mm,,Clamps 40.8mm QR
Fork	Alu alloy AL7005, Strengthen, 20"
Head Sets	Alu alloy CNC, 44*44mm
Derailleur Lever	LTWOO -8S
Rear Derailleur	LTWOO -8S
Cranksets	RS, Alu alloy, Square hole, 38T with guard
Cassettes	SUGEK-8S, 11-32T
Chain	SUMC-8S
Brake	RS cable-pull disc brake, ZOOM brake lever with EM power off, 160/160mm
Hub	RS Alu alloy, 2-sealed Bearings, Disc brake
Rim	RS, Alu alloy with Double-wall&Rivets, W24×H19mm
Spoke	SHUNJIU, Circular
Tire	KENDA-K935, 20×1.95"
Grips	Circular, 22.2×130mm&locking ring,Comfortable
Saddle	Thickening and Comfortable
Pedals	ABS, foldable
Motor	Hub Motor,Slotted, 36V350W (48V350W)
Max Torque	50 N.m
Assist Speed	25KMh limited (35KMh max)
Pedal Sensor	Speed (cadence)
Battery	18650 Li-ion 480Wh, 36V13A(48V10A)
Endurance	Pedal assist, 70-90KM； Throttle, 40-50KM
Charging Time	5-7 Hours
Charger	2A, DC2.1
HMI	LCD digital, 0-5 Modes
Controller	Intelligent IC & Sine wave
Waterproof	IP56, Waterproof connector
Max Load	120 KG
